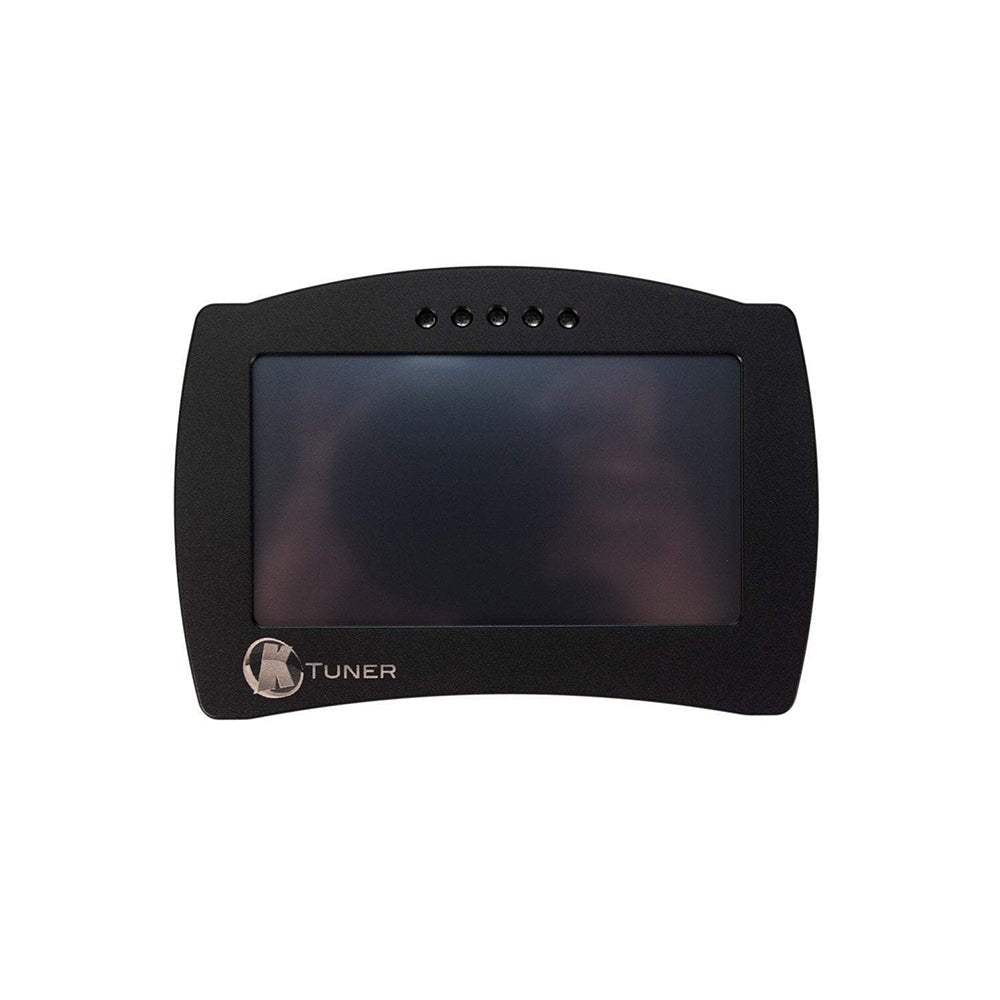

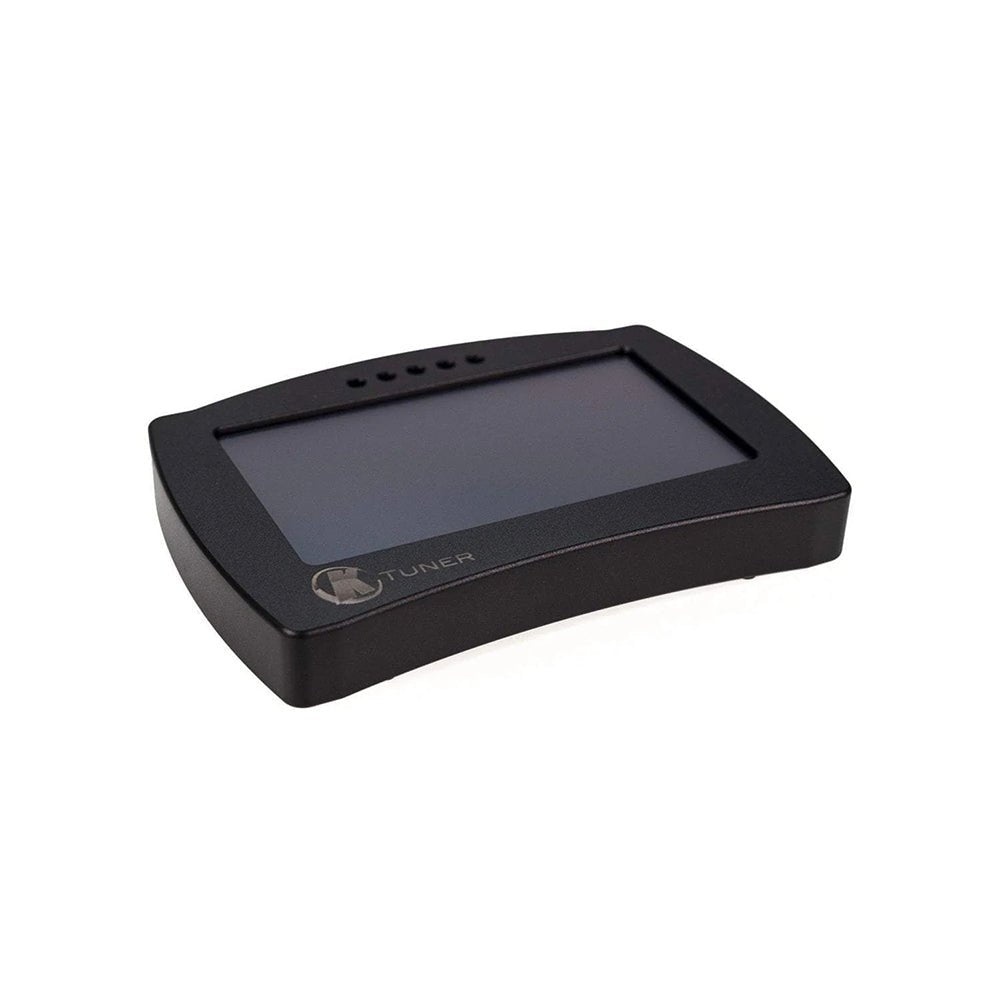

KTunerFlash V2 Touch – Flash Based Hardware

The KTunerFlash V2 Touch Unit is the new All-In-One solution from KTuner. The KTunerFlash V2 Touch covers all KTunerFlash applications and is not vehicle specific!

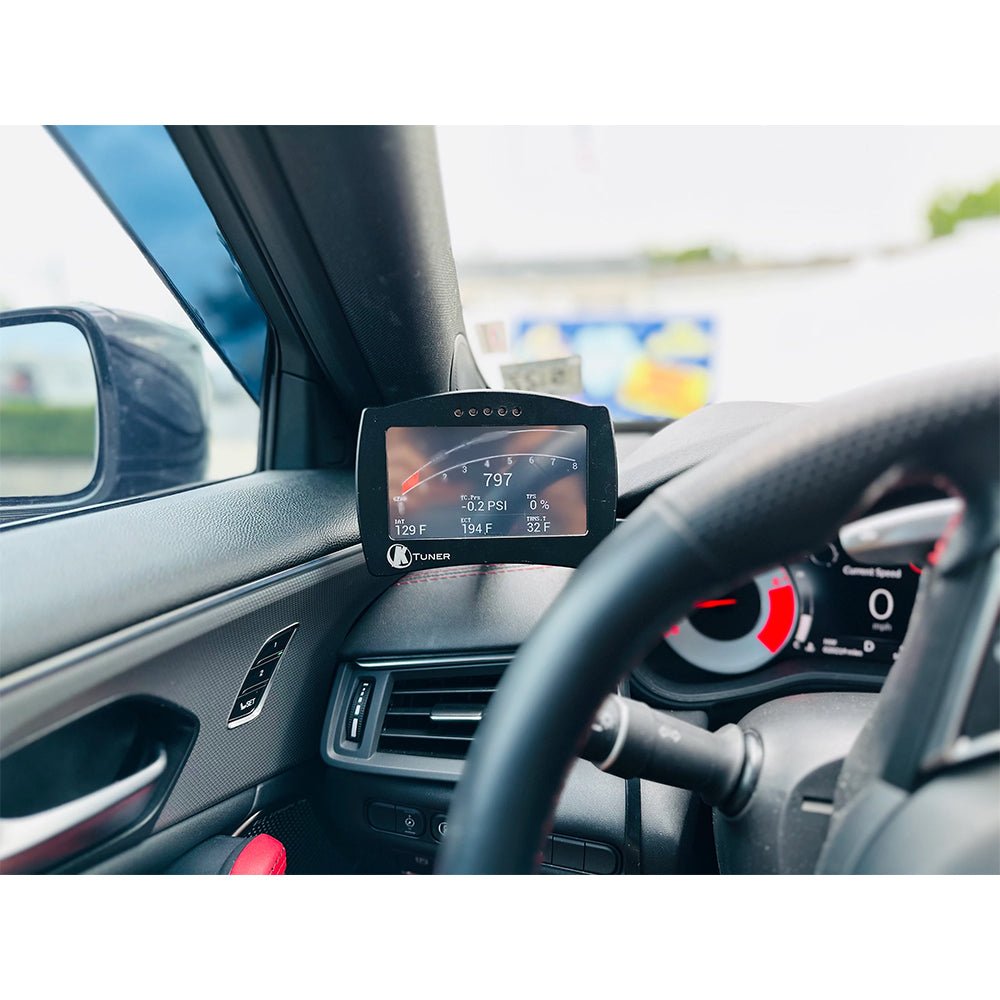

The KTunerFlash V2 Touch features a 5″ touchscreen display that can show essential sensor data in real-time as a digital dash display. Though it’s meant as a handheld a simple Dual-T bracket can be added to allow mounting on a variety of inexpensive Dual-T mounts.

Through a simple to use touch interface you can choose between different layouts, multiple data items, and even color options on layouts that support color changes.

Via full integration with our KTuner Tuning Software you are able to load the factory tune and multiple custom tunes to the KTunerFlash V2 Touch allowing you to switch tunes without the need for a laptop. Easily flash back to factory with the touch of the screen. If you’re making quick changes or on the dyno you can also flash through the KTunerFlash V2 Touch without having to load the tune to the unit first, as a pass-through device.

5 Programmable LEDs can be set to show any combination of colors (RGB) and even allow for fading between a start and end color based on your settings. Customizable intensity settings for each breakpoint allow you to fade in or out at your desired breakpoints. Warnings allow an LED to flash rapidly to easily grab your attention. This can be used for shiftlights, an overheat warning, overboost warning, and other options.

KTunerFlash V2 Touch features On Board Logging With Programmable On/Off Parameters for recording datalogs without a laptop! We allow up to 1000 datalogs to be recorded with no limit on length, so you’ll never miss a beat. Quickly enable or disable on board logging from the menu and once your parameters are met it will record all essential data for later review.

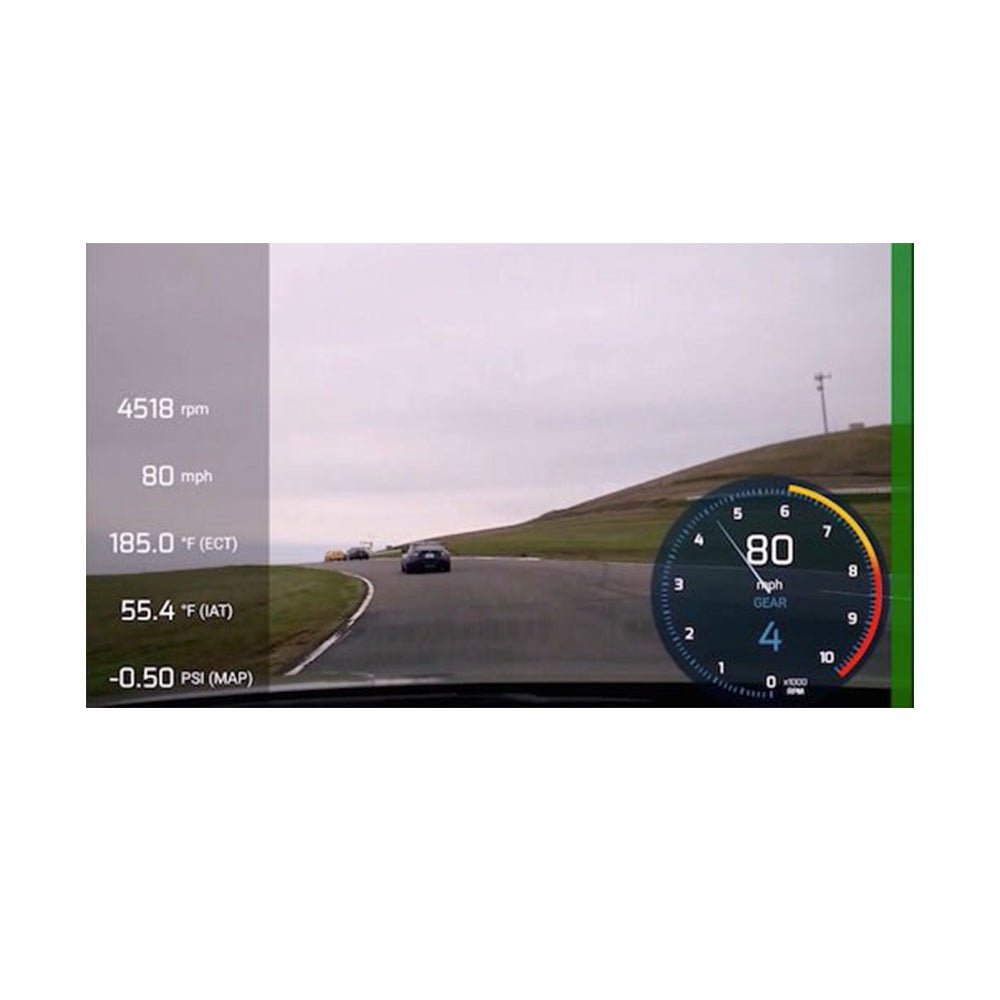

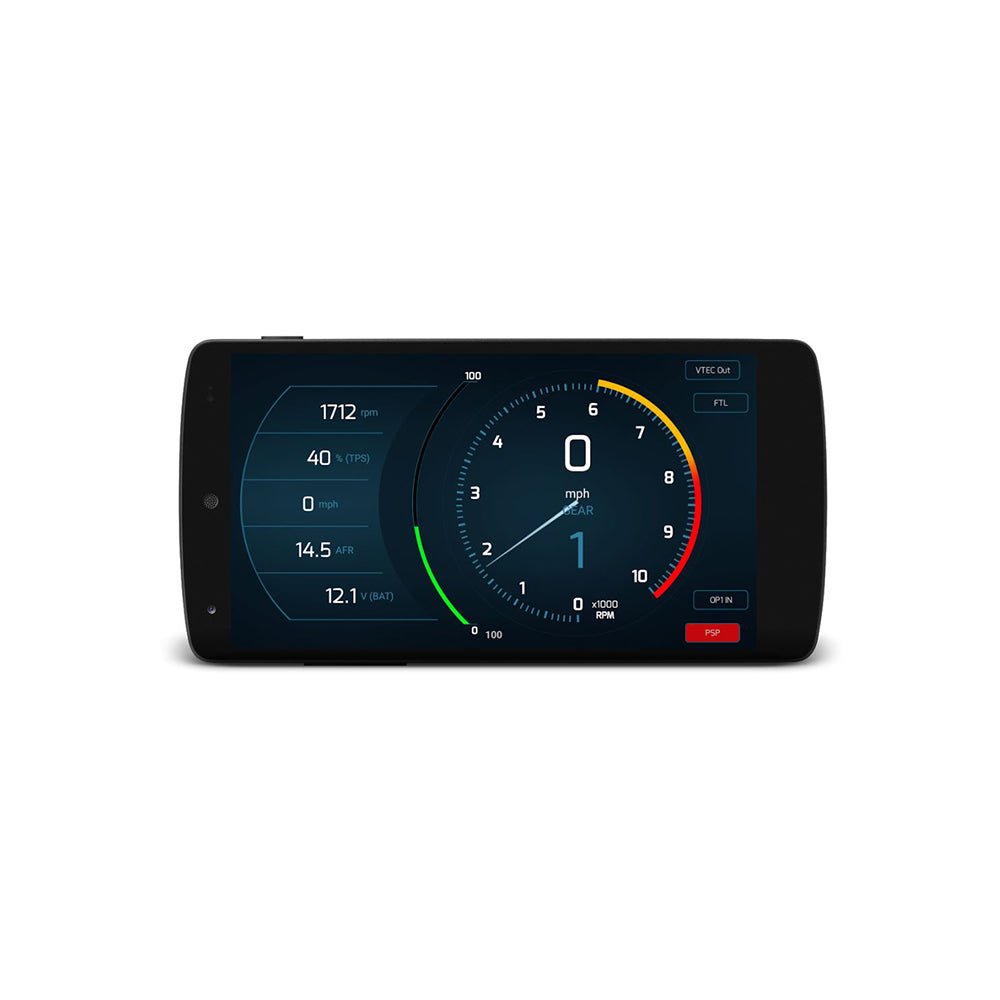

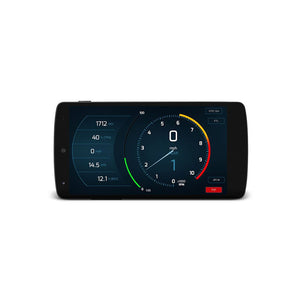

KTunerFlash V2 Touch has built-in bluetooth integration. With a supporting app, like TunerView for Android ($4.99), you are also able to add additional gauge integration for real-time data display and more. The TunerView app allows you to use your Android device as a video camera and overlay real-time data from the KTunerFlash V2 Touch.

he KTuner Flash V2 end-user tuning package comes with a single KTunerFlash V2 hardware unit paired with a single user license for the downloadable KTuner software.

Improved throttle response
Reduced turbo lag
Improved low-end and midrange torque
Smoothed boost curve
Produce sporty feel and drivability
5″ Touch Screen Display
Real-Time data display with multiple layouts
Easy to navigate menu system for settings
Store multiple tunes, including factory. Flash without the need for a laptop
On Board Logging, record datalogs without the need for a laptop
5 Programmable LEDs (RGB) for shift lights, warnings, etc
Bluetooth connectivity for peripherals and the TunerView Android app
This unit is locked to one ECU and allows you to alter the settings in your ECU
Return to factory at any time and unlock the unit to resell
This allows datalogging and reflashing right over your factory OBD2 port! (J2534 OBD Interface)
Extended data parameters available on certain vehicles
Diagnose any Honda/Acura CAN vehicle, even when already locked to a vehicle

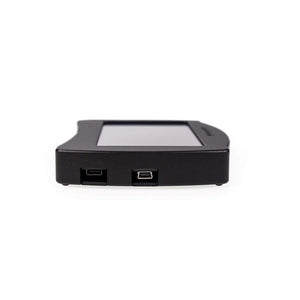

KTuner uses USB connectivity for fast data transfers

Note: the KTuner Flash V2 Touch does not allow tuning parameter changes or direct tuning, a laptop is required for doing that. The V2 Touch is strictly a monitoring, data logging, and tune storage device. By tune storage device, it's meant that you are able to keep multiple tuned calibration files directly on the Touch. This means you can upload (flash) those various saved tunes to the ECU at any time. Example: if you have two separate tunes -- one for daily driving and one for race purposes -- you can have both tunes saved onto the Touch and flash to either tune when desired.

KTuner Flash List of Supported Vehicles:
(links provided for detailed information)

This is a Race Only product that is to be used solely for competition. It cannot be used on vehicles that are operated on public streets, roads or highways. Its use is limited to closed-course and open-course racing that is formally sanctioned by a recognized racing organization. Any other use, including recreational off-road use, could be in violation of local, state and federal laws.

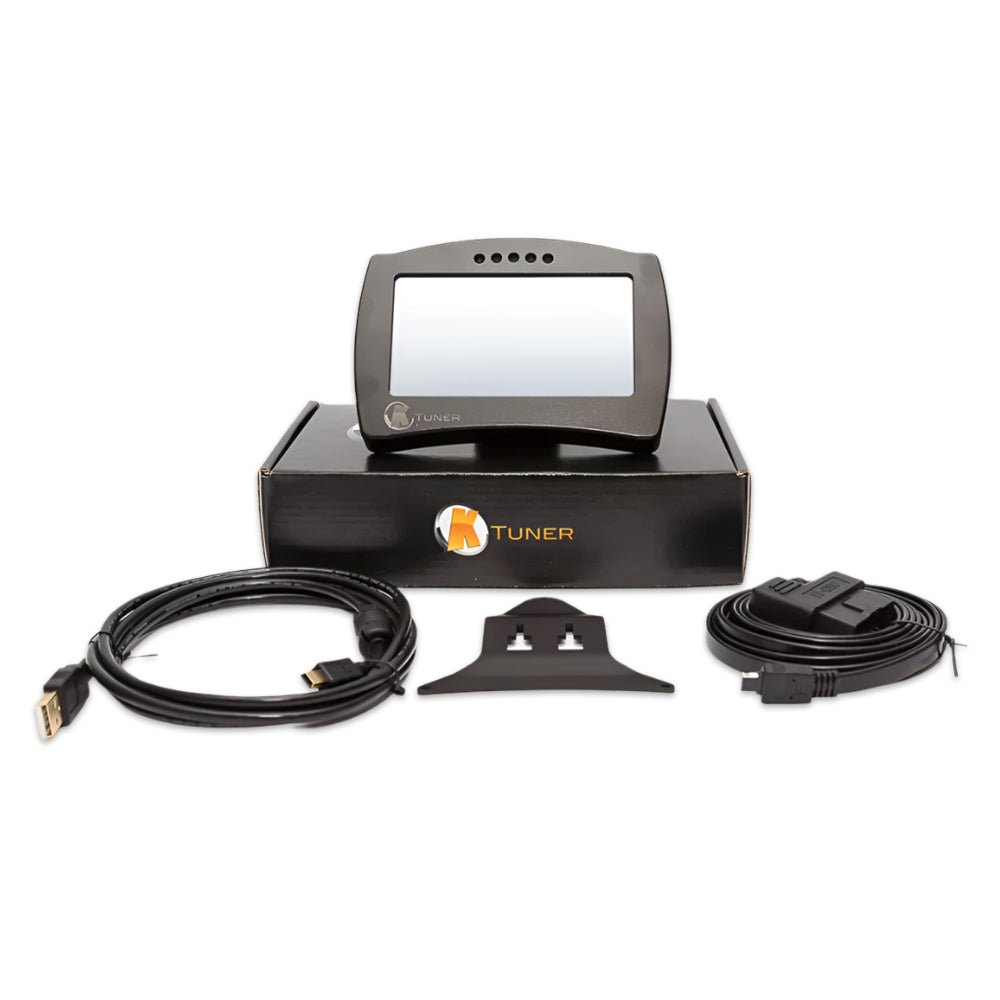

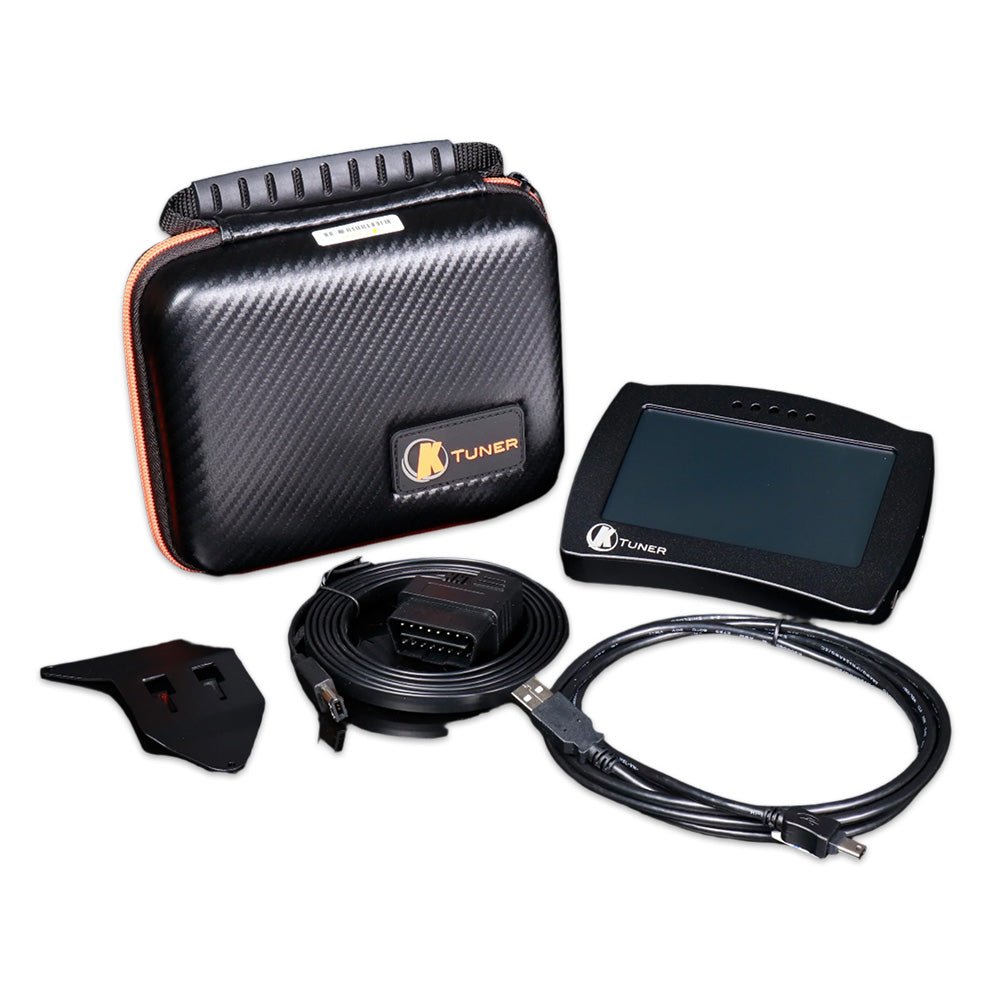

What's In The Box?

1 - All-In-One Display
KTuner Hardware/Software
All Necessary Wiring
Instruction Manual
